Finite Element Analysis and Simulation software
A Connected Desktop App for
Onshape Full-Cloud CAD software
Finite Element Analysis and Simulation software
A Connected Desktop App for
Onshape Full-Cloud CAD software
Onsimulation connects to your Onshape account to access geometry (Parts and Assemblies) that you have created on the full-cloud CAD system. It directly uses the CAD model and a background mesh to perform immersed boundary Finite Element Analysis (FEA), avoiding mesh generation difficulties.

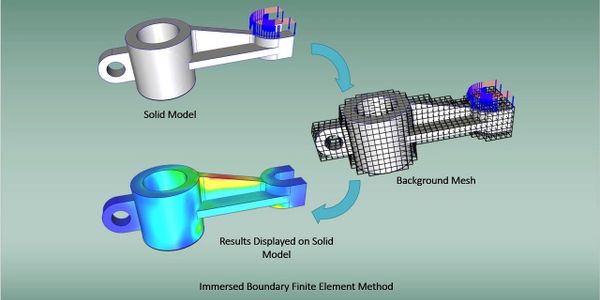

Onsimulation uses an immersed boundary approach for finite element analysis where the geometry (CAD model) is immersed in a background mesh. The background mesh generation is fully automated even for complex geometries and assemblies. There is no need for de-featuring or simplifying the geometry.
Onsimulation is free to use with any public document on Onshape. So give it a try today!
Subscription is needed only for working with private documents. The app can be subscribed from the App store on Onshape site.
