Structural analysis

1D analysis

1D analysis does not require geometry from CAD software. Such structures are defined element-by-element within Onsimulation.

  • Truss-like structures
  • Frame-like structures

2D analysis

2D analysis requires geometry that is defined using a single extrude or revolve. A planar face of the solid is selected to specify the plane on which the analysis is to be performed. The types of 2D analysis are:

  • Plane stress
  • Plane strain
  • Axisymmetric

Plates and Shells

Thin structures made of sheet metals or thin plastic shells must be modeled as plates or shells. The geometry for such models should be a surface or a face of a solid.

  • Plate-like structures
  • Shell-like structures

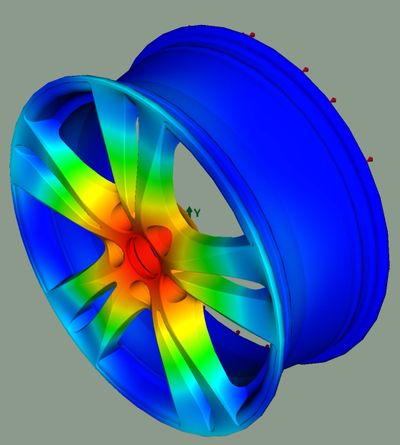

3D analysis

If a structure cannot be modeled as 1D, 2D, plate or shell then it must be modeled as 3D. The geometry can be any solid model created in CAD software.

  • Example 1
  • Example 2

Assembly models

Assembly models can be 2D or 3D and is typically used to model the interaction of multiple parts often with parts made of different materials.

  • Tied Contact
  • Sliding Contact
